Automating the Binding Process in Cython

20.04.2020 — Python, Cython — 3 min read

Summary: We discuss an approach towards automating the writing of Cython bindings

Part 1, Overview

Cython is a wonderful tool for writing Python bindings. It gives the developer a tremendous amount of control over both code performance and semantics in a language that is a superset of Python. It's no surprise much of the Scientific Python ecosystem uses Cython to wrap C and C++ libraries.

However, in this post, I want to discuss one of the common pain points of Cython as well an approach I'm currently working on to alleviate some of this pain. The pain point I'm focusing on is the shear amount of code one needs to write in Cython. Consider the following dummy C++ class

1// foo.hpp
2
3class Foo {
4    Foo(int a);
5    int foo_meth(int b);
6}

In order to build cython bindings for this class, one would need write, at a minimum, one pxd file for the c-level declaration

1# foo.pxd
2
3cdef cppclass Foo:
4    Foo(int a)
5    int foo_meth(int b)

and one pyx file for the python class that wraps the C++ classes

1# foo.pyx
2
3cdef class Foo:
4
5    cdef shared_ptr[_foo.Foo] _thisptr
6
7    def __cinit__(self, a):
8        self._thisptr = _foo.Foo(<int>a)
9
10    def __dealloc__(self):
11        if self._thisptr == NULL:
12            self._thisptr.reset()
13
14    def foo_meth(b):
15        return self._thisptr.foo_meth(<int>a)

So you can see that 3 lines from a C++ file becomes ~12 lines of Cython. This isn't a major problem for small C or C++ libraries, but for large libraries with 1000's of interface files, writing Cython bindings for the entire library becomes a colossal task.

A second problem can arise when a C or C++ library is under heavy active development. Public interfaces may change significantly from one release to the next rendering your hard-fought Cython bindings obsolete. Like Sisyphus, you're plagued with the eternal task of keeping your bindings up to date with the latest release.

One natural approach to resolving this dilemma to write a computer program that automatically generates these bindings for you, "on the fly", every time there is a new release of the underlying C or C++ library. It's this approach I want to discuss in here.

The essence of the idea is familiar for anyone who has studied compilers. If you want to transform data (in this case, code) from one language (C/C+) to another (Cython) you need a parser. The work flow is to first translate the C/C++ source code into an abstract syntax tree and then to walk the tree and generate the transformed Cython code. So all we need in order to give this approach a try is a C/C++ parser. Know any good ones?

Just kidding, sort of. Until recently, the only C/C++ parser in the open source world was buried inside GCC along with linkers, Fortran parsers, and various other goodies. Thankfully, this situation has improved with the LLVM project. Clang is production quality C family compiler whose parser is accessible in python through the libClang bindings. The story for C code, is even better. There is an open source C parser written in pure python called pycparser.

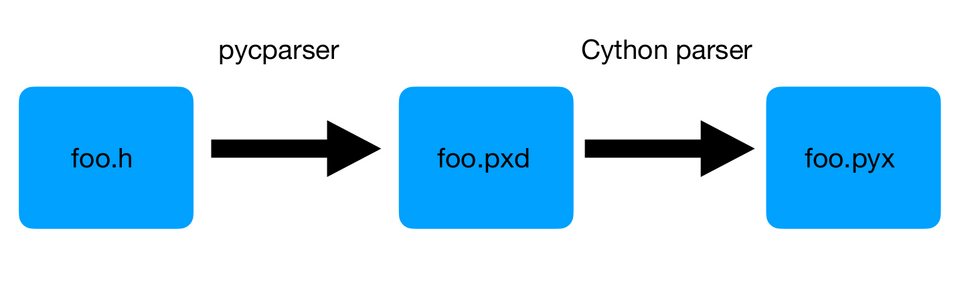

We can actually take this parsing approach one step further. We can use the C/C++ parsers to translate source code into C-level declarations in pxd files and then use Cython's own parser to translate from pxd files into pyx files. This latter step is the approach taken by the autowrap project. A schematic overview of the process is given below

Pycparser

Pycparser is a C parser written in pure python. We can use it to parse C header files and generate corresponding pxd files. For the purpose of this post, we'll use an example C file from the c-algorithms library In particular, we'll focus on its implementation of a trie data structure (trie.h), annotated in the snippet below:

1// trie.h
2
3typedef struct _Trie Trie;
4
5typedef void *TrieValue;
6
7Trie *trie_new(void);
8
9void trie_free(Trie *trie);
10
11int trie_insert(Trie *trie, char *key, TrieValue value);
12...

The idea is to use pycparser to translate this to the equivalent cython declarations in a pxd file. The generated pxd file would look like this:

1# trie.pxd
2
3cdef extern from "c-algorithms/src/trie.h":
4    ctypedef struct Trie:
5        pass
6
7    ctypedef void *TrieValue
8
9    Trie *trie_new()
10    void trie_free(Trie *trie)
11
12    int trie_insert(Trie *trie, char *key, TrieValue value)
13    ...

So the translation consists of the following:

placing all statements inside a cdef extern block
typedef goes to ctypedef
trailing ; is removed from each statement
typedef struct goes to pass (skipped implementation)
trie_new(void) has void removed

AST

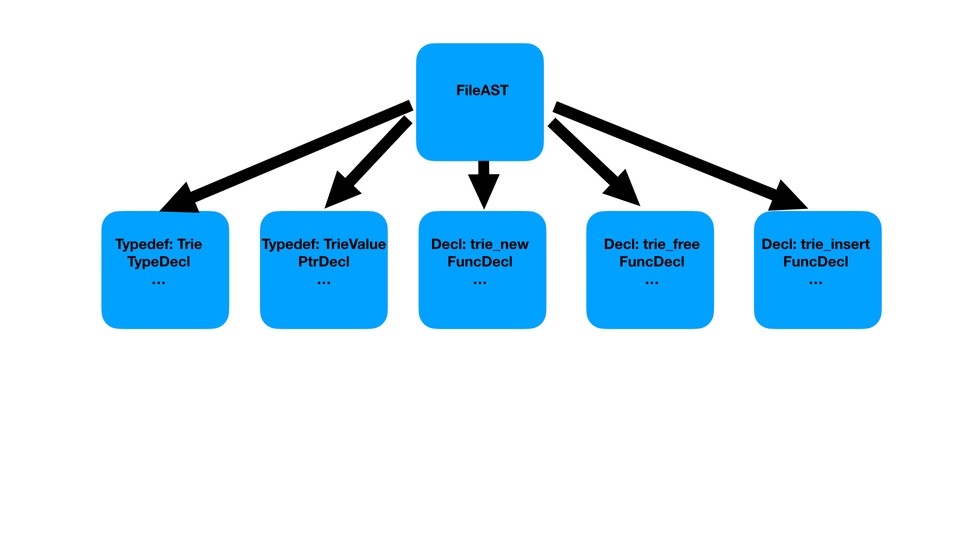

These translation are implemented by walking a intermediate data representation known as an abstract syntax tree (AST). Each node in the tree is "visited" by a corresponding visit function. The AST for this example looks like the following:

In order to walk the AST, I wrote a Cython generator class. This is slight modification of the C generator that comes with the pycparser release. Take a look at my github for more details. The idea is to provide a visit_foo method for each node type that generates the correct Cython implemenation code. Some highlights from the generator are given below

1def visit_Typedef(self, n):
2    s = 'c' # prepend 'typedef' with 'c'
3    if n.storage: s += ' '.join(n.storage) + ' '
4    # handle typedef struct definition
5    if type(n.type) == c_ast.TypeDecl and type(n.type.type) == c_ast.Struct:
6        s += self._handle_typedef_struct(n.type)
7    else:
8        s += self._generate_type(n.type)
9    return s
10
11def visit_ParamList(self, n):
12    ''' return '' if 'void' is only argument
13    '''
14    param_list = ', '.join(self.visit(param) for param in n.params)
15    if param_list == 'void':
16        return ''
17    else:
18        return param_list

In my next post, I will discuss how to use the Cython parser itself to parse pxd files and generate pyx files.
